苏州汇成元供应:I-PEX 20320全系列连接器

所用连接器产品描述：

0.5 mm 间距, 90度出线垂直插拔，极细同轴线连接器，混合型 (组合高度: 4.3 mm)

适用于比标准尺寸更宽的电缆

高速率传输, eDP HBR2 (5.4 Gbps/lane)应用的理想之选

同时焊接不同尺寸的极细同线和电子线

接点间距(mm): 0.500

嵌合高度: 4.50 Max. (4.30 mm Nominal)

可提供Pin数: 28 32 40

极细同轴线(AWG): #36 #38 #40 #42 #44 #46

嵌合类型: 垂直

连接器展示图片：

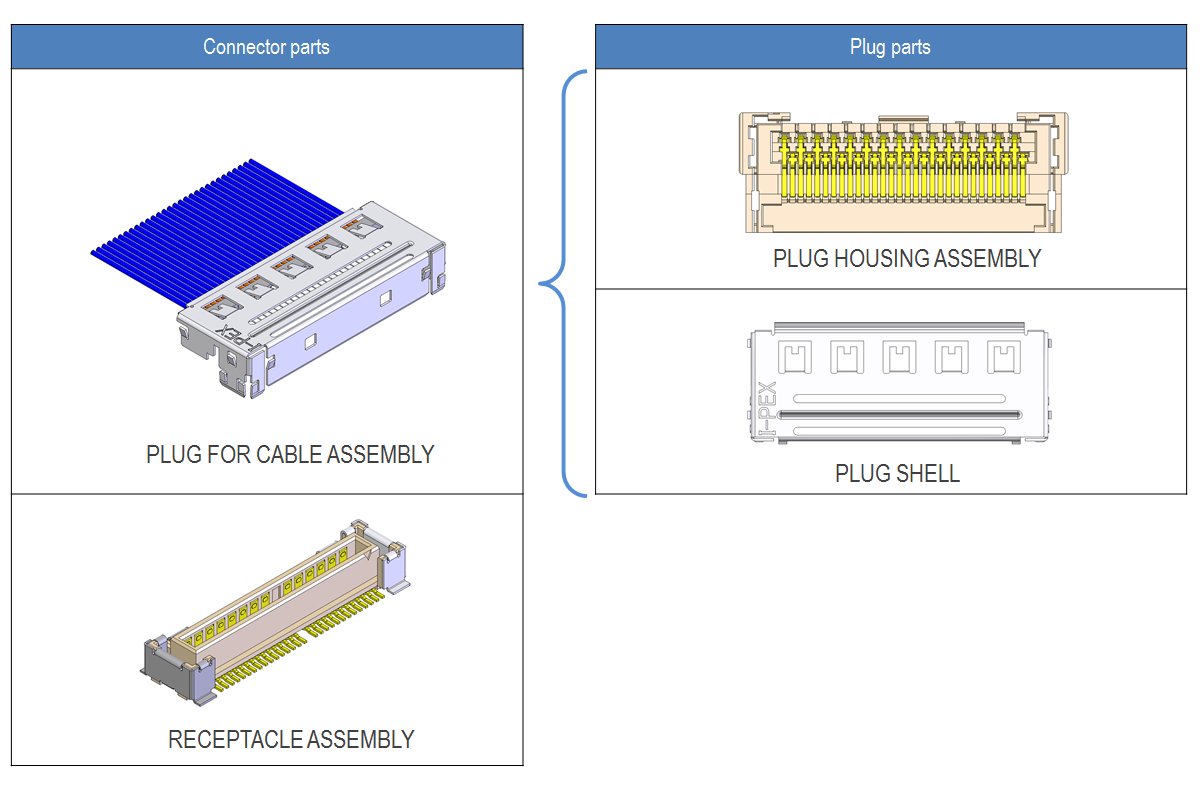

连接器型号说明图示：

I-PEX20320系列FPL RECOMMENDED料号表:

Part Number Description		Pin count	Part Number
PLUG FOR CABLE ASSEMBLY		30	20319-R30T-11
		40	20319-R40T-11
		50	20319-050T-11
	PLUG HOUSING	30	20320-R30T-11
		40	20320-R40T-11
		50	20320-050T-11
	PLUG SHELL	30	1968-0302
		40	1968-0402
		50	1968-0502
RECEPTACLE		30	20323-R30E-12
		40	20323-R40E-12
		50	20323-050E-12

Part Number Description		Pin count	Part Number
PLUG FOR CABLE ASSEMBLY		30	20319-030T-11
		30	20319-030T-12
		30	20319-030T-41
		30	20319-030T-42
		30	20319-R30T-12
		30	20319-R30T-41
		30	20319-R30T-42
		40	20319-040T-11
		40	20319-040T-12
		40	20319-040T-41
		40	20319-040T-42
		40	20319-R40T-12
		40	20319-R40T-41
		40	20319-R40T-42
		50	20319-050T-41
	PLUG HOUSING	30	20320-030T-11
		30	20320-R30T-12
		40	20320-040T-11
		40	20320-R40T-12
		50	20320-050T-41
RECEPTACLE		30	20323-030E-11
		30	20323-030E-11W
		30	20323-030E-12
		30	20323-030E-12N
		30	20323-030E-12W
		30	20323-030ED11
		30	20323-030ED12N
		30	20323-R30ED12N
		40	20323-040E-11
		40	20323-040E-11W
		40	20323-040E-12
		40	20323-040E-12N
		40	20323-040E-12W
		40	20323-040ED12N
		40	20323-R40E-11
		40	20323-R40ED12N
		50	20323-050E-11
		50	20323-050ED41

I-PEX20320系列FPL RECOMMENDED技术参数表：

嵌合类型	垂直
Contact pitch	0.500 mm
Max Height	4.50 mm
Depth	7.800
Width Formula	5.0+(0.5*?p) mm
Pin count	30 40 50
Micro-Coaxial Wire (AWG)	#36 #38 #40 #42 #44 #46
Discrete Wire (AWG)	#32 #34 #36 #38 #39 #40 #42 #44 #46
Current rating	0.3A AC/DC [AWG #40] per contact 0.6A AC/DC [AWG #38] per contact 0.8A AC/DC [AWG #36] per contact 1.0A AC/DC [AWG #28~34] per contact
High Data Rate Standards	eDP HBR 3 (8.1 Gbps) HDMI® 2.0 (6 Gbps) MiPi Gear 3 (5.8 Gbps) eDP HBR 2 (5.4 Gbps) USB® 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps)
Full EMI shielding	No
Mechanical lock	No

所用连接器全系列料号清单：

20321-028T-11	20321-040T-11	20322-032T-11	1968-0302	1968-0502	20324-032E-11
20321-032T-11	20322-028T-11	20322-040T-11	1968-0402	20324-028E-11	20324-040E-11
20319-R30T-11	1968-0502	20319-R30T-12	20319-R40T-41	20323-030E-11	20323-040E-11
20319-R40T-11	20323-R30E-12	20319-R30T-41	20319-R40T-42	20323-030E-11W	20323-040E-11W
20319-050T-11	20323-R40E-12	20319-R30T-42	20319-050T-41	20323-030E-12	20323-040E-12
20320-R30T-11	20323-050E-12	20319-040T-11	20320-030T-11	20323-030E-12N	20323-040E-12N
20320-R40T-11	20319-030T-11	20319-040T-12	20320-R30T-12	20323-030E-12W	20323-040E-12W
20320-050T-11	20319-030T-12	20319-040T-41	20320-040T-11	20323-030ED11	20323-040ED12N
1968-0302	20319-030T-41	20319-040T-42	20320-R40T-12	20323-030ED12N	20323-R40E-11
1968-0402	20319-030T-42	20319-R40T-12	20320-050T-41	20323-R30ED12N	20323-R40ED12N
20323-050E-11	20323-050ED41
